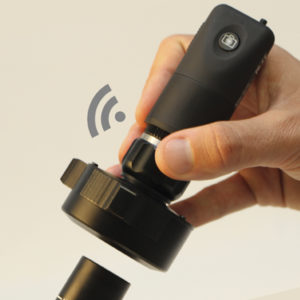

GT470 Digital Eyepiece Camera
- Wirelessly captures videos and snapshots
- Performs microscopic measurements with sophisticated bundled software
- Compatible with industry standard 25.5 – 36.5 mm microscope eyepieces
- Highly portable. No mechanical assembly required
- Observes and records in real time (30 FPS)
- Transmits within a range up to 20ft
- Built-in snapshot button for wireless operation
- High quality multi-layered glass lenses
For Technical Specifications Click Here
Uses
- Lab / Science
- High tech repair
- Gemology
- Quality inspection
- Biology
- Education
- Dermatology
What’s Included
- Digital Eyepiece Camera
- Wireless Receiver
- FireflyPro Software CD
- AC Outlet Charger
- USB Cable
- Velvet Carrying Case
- Calibration Tool
- User Manual on CD
| Technical Details | |
|---|---|
| Sensor Resolution | 720×480 |
| Magnification | Native Optical: 10x – 200x Digital: 10x – 600x |
| Lens Assembly | Dual Lenses 3-Layer Glass, 650nm cutoff |
| Video | Format: YUY2 Frame rate: 30 FPS |
| Video/Image Properties | Color: 360 Level Hue, Saturation, White Balance Exposure: Brightness, Contrast Image: Sharpness, Gamma |
| Video, Image Files | BMP, AVI |
| Lighting | 8 Ultra-Bright LEDs Fully adjustable brightness |
| Battery | Built-in 800mAh |
| Wireless Link | 4 Independent channels |
| Dimensions | 13cm x 3.6cm x 4cm |
| Interface | USB 1.1/2.0 and above |
| Software | Scalable Window, Zoom, Freeze, Resolution, Rotate, Flip Region of Interest (ROI) Real time measurements Automatic/Manual white balance |
| Operating Systems | Windows 8, Windows 7, Vista, XP and Mac OS 10.4 or higher |
| Warranty | 1 Year Warranty |
For more information contact sale@healthtntour.com
